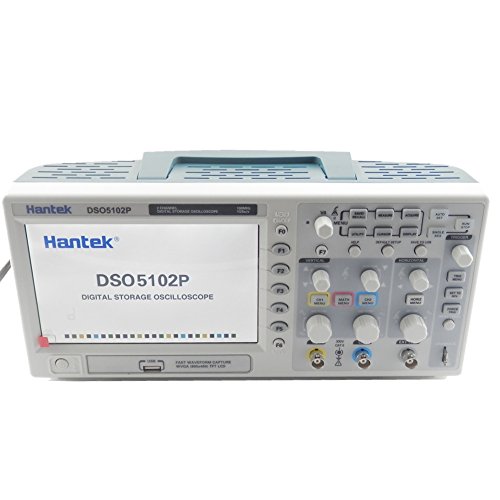

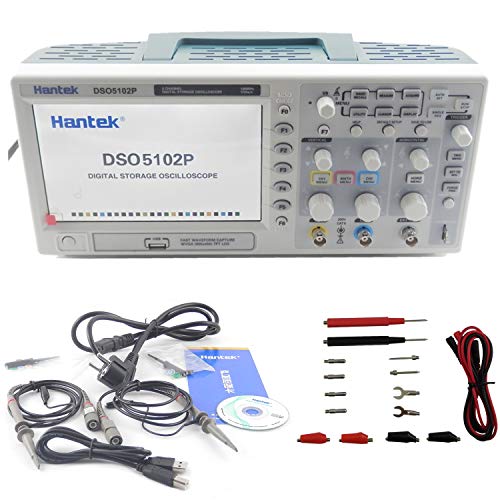

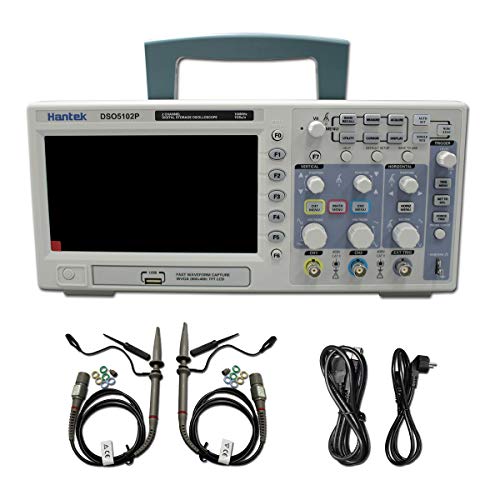

Hantek DSO5102P Digital Storage Oscilloscope Usb 100MHz 1GSa/s 40K,2 channel,2CH

Price: $299.99 $268.98
Product prices and availability are accurate as of 2018-11-12 11:08:53 UTC and are subject to change. Any price and availability information displayed on http://www.amazon.com/ at the time of purchase will apply to the purchase of this product.
You Save: $31.01 (10%)
Availability: In Stock
CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON SERVICES LLC. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Manufacturer Description

Features:
100MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display, WVGA(800x480)
Record length up to 40K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis

Specifications:
Model:DSO5102P
Bandwidth:100MHz
Channel:2
Real-Time Sample:1GSa/s
Equivalent Sample:25GSa/s
Memory Depth:40K
Rise Time:3.5ns
Time Base Accuracy:±50ppm
Time Base Range:4ns/div-40s/div
Input Impendance:1M?
VOLTS/DIV Range:2mV/div?5V/div
A/D Converter:8 bit
Position Range:±50V(5V/div),±40V(2V/div?500mV/div), ±2V(200mV/div?50mV/div),±400mV(20mV/div?2mV/div)
DC Gain Accuracy: ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit:100MHz
Trigger Types:Edge,Video,Pulse,Slope, Over time, Alternative
Trigger Source:CH1,CH2,EXT,EXT/5, AC Line
Math:+,-,x,÷,FFT
Cursor Measurement: Voltage difference between cursors: ?V; Time difference between cursors: ?T; Reciprocal of ?T in Hertz (1/?T);
Auto Measuerment:Frequency, Period, Mean,Pk-Pk,Cycli RMS,Minimum, Maximum,Rise time,Fall Time,+Pulse Width,-Pulse Width,Delay1-2Rise, Delay1-2Fall,+Duty,-Duty,Vbase,Vtop, Vmid,Vamp,Overshoot,Preshoot,Preiod Mean,Preiod RMS, FOVShoot, RPREShoot,BWIDTH,FRF
Display:7" TFT 16K Color LCD,800*480 dots

Product Features

100MHz bandwidths;1GSa/s Real Time sample rate. Large (7.0-inch) color display,WVGA(800x480);Record length up to 40K. Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. USB host and device connectivity, standard;Multiple automatic measurements. Four math functions, including FFTs standard;Provides software for PC real-time analysis.
